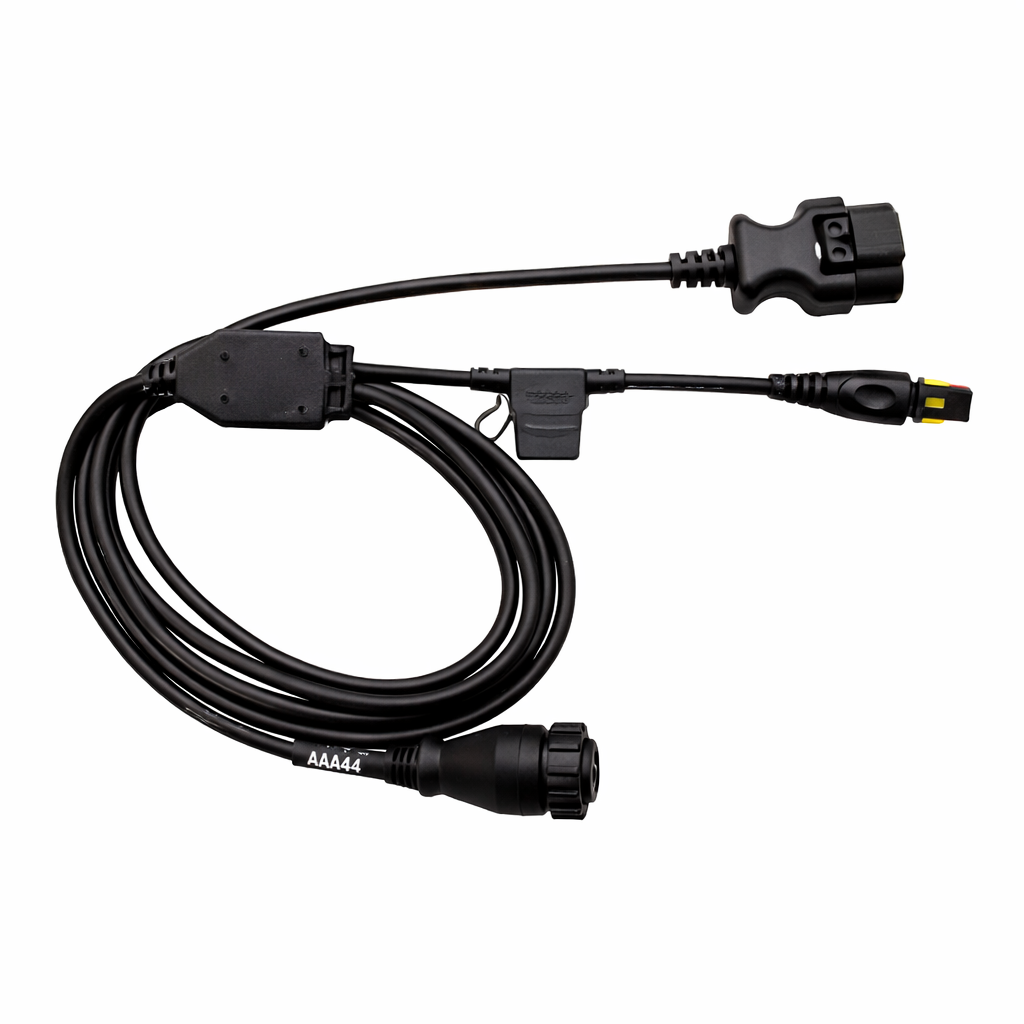

TEXA AM44 Diagnostic Cable – MERCURY / MERCRUISER / CUMMINS (10-pin CAN)
The TEXA AM44 is a complete diagnostic cable designed to support marine engines equipped with a 10-pin diagnostic socket and CAN network. The cable enables advanced diagnostics of primary and secondary systems, configuration of control levers and performance of the GLOBAL SCAN function in modern vessels.
Supported brands
The AM44 cable allows diagnostics of motors of the following brands:
-
Mercury
-
Mercury Diesel
-
Mercury Racing.
-
MerCruiser
-
Mariner
-
Cummins Marine
-
Cummins MerCruiser Diesel
Scope of diagnostics – details
-
MERCURY / MERCURY RACING / MERCRUISER / MARINER
-
injection system diagnostics,
-
diagnostics of secondary systems,
-
configuration of control levers,
-
motors equipped with CAN network and CAN protocol.
-
-
MERCURY DIESEL
-
10-pin socket used in motors manufactured since 2011,
-
diagnostics of secondary systems.
-
-
CUMMINS MARINE
-
10-pin socket used in motors manufactured since 2010,
-
diagnostics of secondary systems.
-
-
CUMMINS MERCRUISER DIESEL
-
diagnostics of secondary systems,
-
configuration of control levers.
-
GLOBAL SCAN function
GLOBAL SCAN (CAN)
The AM44 cable allows you to activate the GLOBAL SCAN function, which allows you to quickly scan the entire CAN network in modern vessels and identify all available controllers and on-board systems.
Intended use
The TEXA AM44 cable is used for:
-
full diagnostics of motors with a 10-pin CAN connector,
-
communication with ECUs and on-board systems,
-
configuration of controls (grips / levers),
-
advanced diagnostics of the CAN network in marine units.
Diagnostic features
In combination with the TEXA interface and the IDC6 MARINE software, the AM44 cable enables:
-
reading and clearing fault codes,
-
preview of real parameters (Live Data),
-
identification of controllers and systems,
-
diagnostics of secondary systems,
-
configuration of control levers,
-
CAN bus scan (GLOBAL SCAN).
The range of functions depends on the brand, year and configuration of the unit.
Compatibility
-
Diagnostic Socket: 10-pin
-
Protocol: CAN
-
Environment: MARINE
-
Software: TEXA IDC6 MARINE
-
Interfaces: TEXA Navigator TXB 2, TXT, TXT MULTIHUB
-
Cable Type: Complete Diagnostic Lead
-
Designation: AM44
Application
-
professional Mercury / MerCruiser / Cummins services,
-
workshops operating modern units with a CAN network,
-
diagnostic centers for yachts and motor boats,
-
Mobile Marine services.
