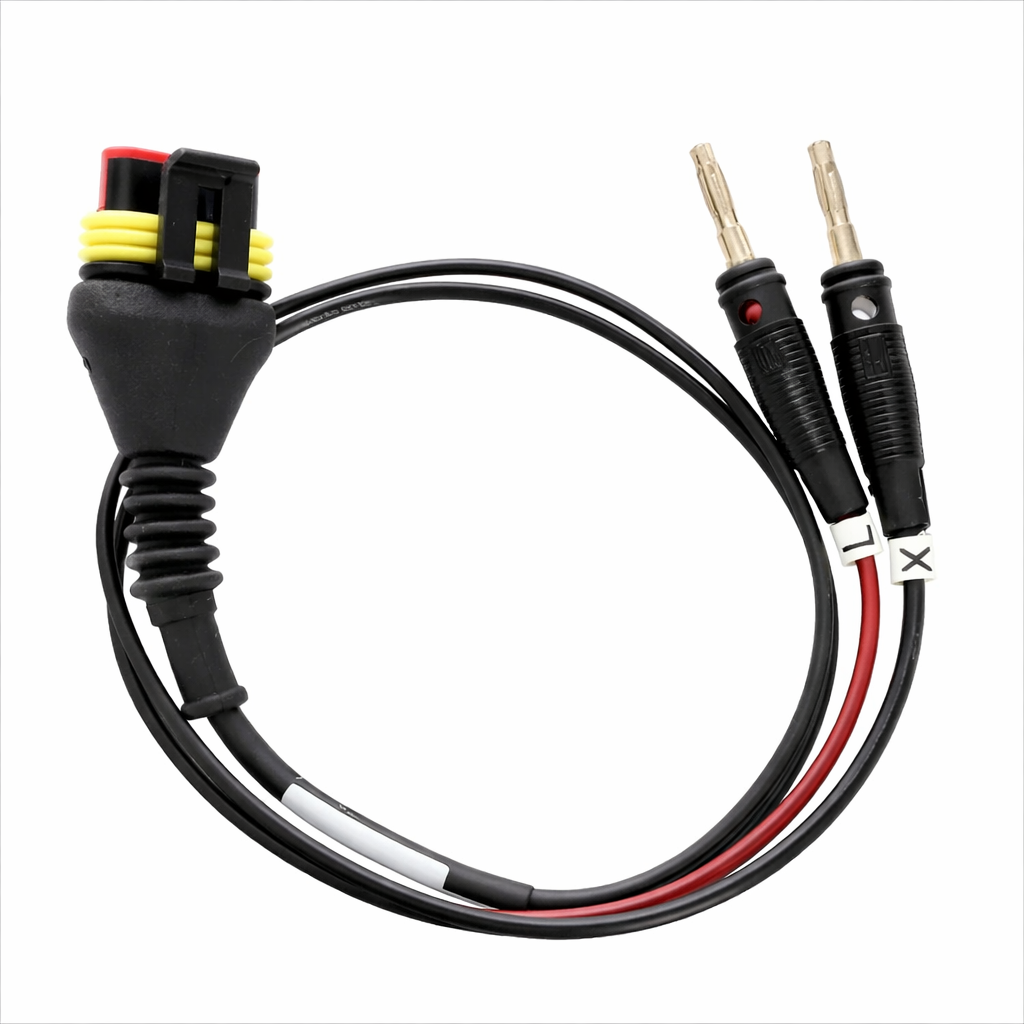

TEXA AM10 Diagnostic Cable – Universal (K and L lines)
The TEXA AM10 is a universal terminal cable equipped with two output lines: K and L, designed for diagnostics of a wide range of motors in the MARINE environment. This solution enables communication with control units by directly connecting the motor diagnostic socket to specific pins – according to the instructions displayed in the TEXA software.
Supported brands and applications
The AM10 cable allows for diagnostics of engines of the following brands:
-
Daedong
-
DAF Marine
-
FNM Marine (engines produced since 2005)
-
Johnson
-
Kawasaki Marine
-
Lombardini Marine
-
-
Suzuki Marine
(motors with round 8-pin socket – not compatible with AM22 cable)
Characteristics and use
-
Two output lines: K and L
-
Probe connection:
To establish communication, the appropriate probe must be connected to the specific pin of the motor diagnostic socket and to one or both lines (K/L) of the AM10 cable. -
Tips in the software:
The TEXA software displays:-
which line (K and/or L) to use,
-
what type of probe to use,
-
which pin of the motor socket to connect.
-
All configuration information is presented directly in the diagnostic procedure.
Base cable required – important!
NOTE: The AM10 terminal cable must be connected to the base cable:
-
TEXA AM01 or
-
TEXA AM01 CAN
The correct choice of base cable depends on the selected motor and is clearly indicated on the diagnostic preparation page in the TEXA software before the start of communication.
Extreme care must be taken not to confuse the base cables.
Diagnostic features
In combination with the right base cable, TEXA interface and IDC6 MARINE software, the AM10 cable enables:
-
reading and clearing fault codes,
-
preview of real parameters (Live Data),
-
identification of controllers and systems,
-
monitoring engine operation,
-
Implementation of service procedures available for a given brand and model.
The range of functions depends on the operation of a particular engine in the TEXA system.
Compatibility
-
Environment: MARINE
-
Communication lines: K/L
-
Software: TEXA IDC6 MARINE
-
Interfaces: TEXA Navigator TXB 2, TXT, TXT MULTIHUB
-
Required base cable: AM01 or AM01 CAN (as indicated by the software)
-
Cable Designation: AM10
Application
-
professional marine services,
-
workshops supporting older and specific diagnostic systems,
-
vessel diagnostic centers,
-
mobile service points.
