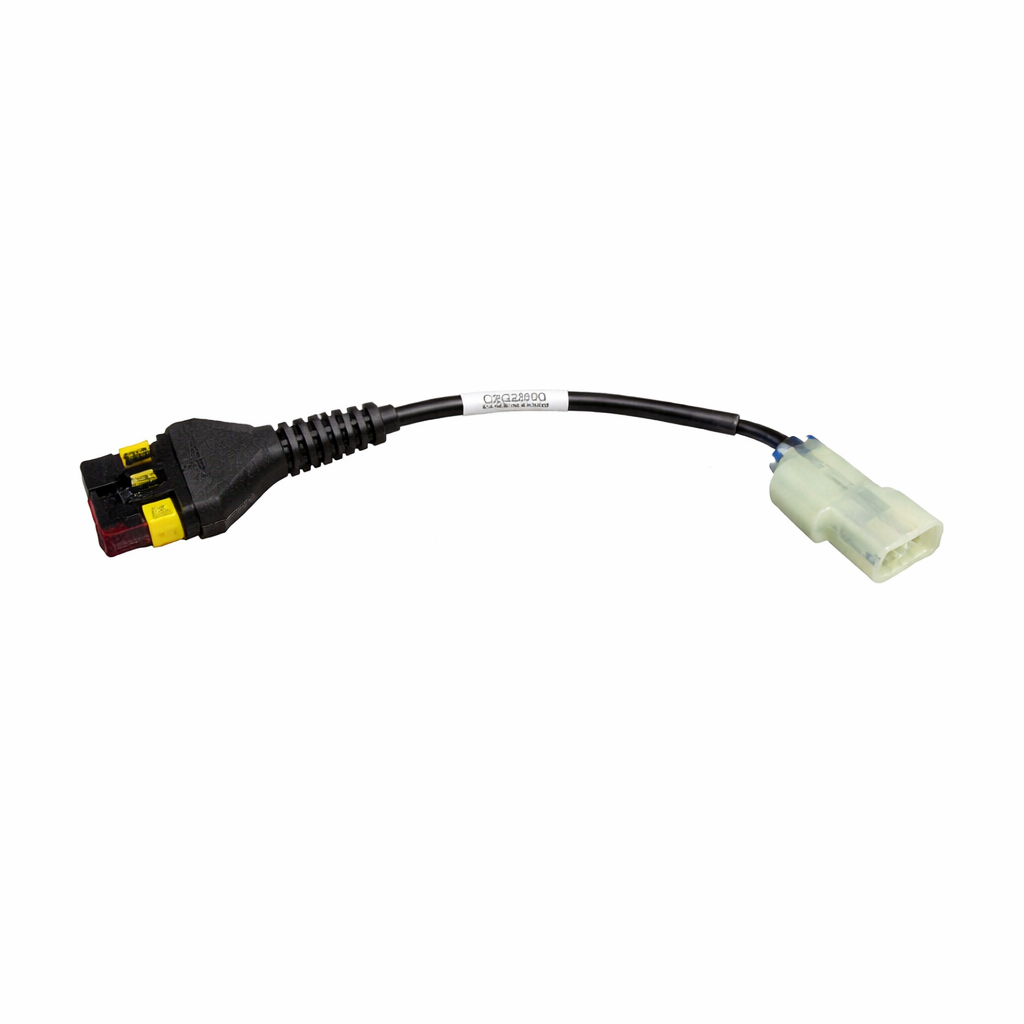

TEXA AM02 Diagnostic Cable – Honda / Tohatsu
TEXA AM02 is a dedicated diagnostic cable for Honda and Tohatsu marine engines equipped with the PGM-FI system. Allows you to connect the TEXA Scan Tester directly to the factory’s engine diagnostic socket, giving you full access to the ECU’s diagnostic functions.
The product is part of the professional diagnostic system from TEXA and is designed to work in the MARINE environment.
Intended use
The AM02 cable is used to diagnose:
-
Honda Marine outboard motors with PGM-FI system,
-
Tohatsu outboard motors with electronic fuel injection PGM-FI.
It is used in professional marine services and mobile diagnostic points.
Requirements
NOTE:
The AM02 cable requires the use of the AM01 main cable.
The AM01 acts as a base adapter and is necessary for proper connection to the TEXA diagnostic interface.
Diagnostic capabilities
In combination with the TEXA interface and the IDC6 MARINE software, the AM02 cable enables:
-
reading and clearing fault codes,
-
preview of real parameters (Live Data),
-
tests of actuators,
-
identification of the driver and software version,
-
resetting service procedures (to the extent supported by the model).
The range of functions depends on the specific model and year of the engine.
Compatibility
-
environment: MARINE,
-
engines: Honda Marine / Tohatsu PGM-FI,
-
base cable: AM01 (required),
-
software: TEXA IDC6 MARINE,
-
TEXA interfaces: Navigator TXB 2, TXT, TXT MULTIHUB.
Use in the service
-
authorized and independent Honda Marine and Tohatsu service centers,
-
outboard motor electronics diagnostic workshops,
-
Mobile Marine services.
