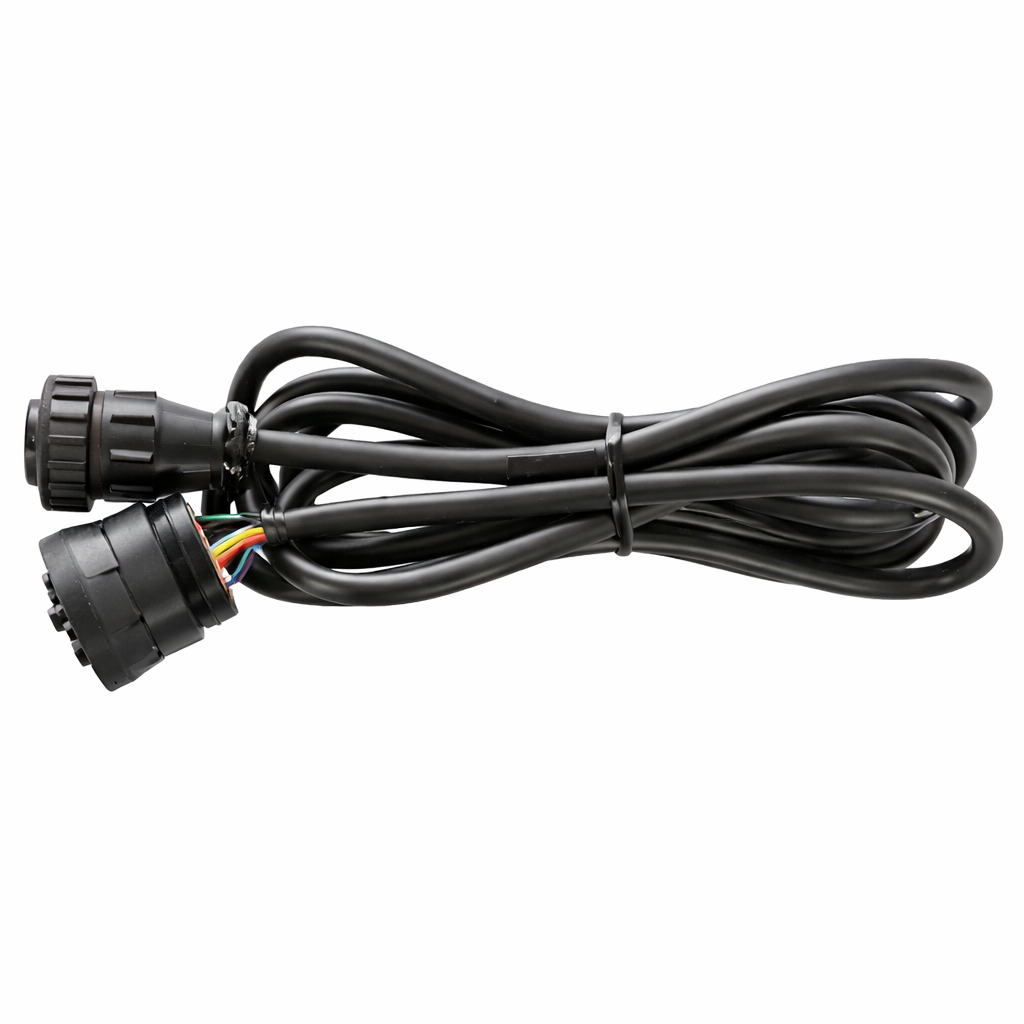

Diagnostic Cable TEXA AM24A – Diesel (DEUTSCH 9-pin)
TEXA AM24A is a complete diagnostic cable designed for diagnostics of the injection system in selected diesel engines and generators equipped with a 9-pin DEUTSCH connector. Provides stable communication in accordance with OEM procedures in a Marine/Industrial environment.
Supported brands and diagnostic scope
The AM24A cable is suitable for diagnostics for the following manufacturers:
-
Cummins MerCruiser Diesel
-
Scope: injection system diagnostics only
-
Note: Other systems require a different socket and a dedicated cable.
-
-
**Mercury Diesel – QSD Series
-
Scope: injection diagnostics for all engines of the QSD series.
-
-
**VM Motors – MR Series
-
Scope: diagnostics of all engines of the MR series.
-
-
Kohler
-
Scope: diagnostics of generators based on John Deere engines.
-
Intended use
The TEXA AM24A cable is used for:
-
diagnostics of the injection system in supported diesel engines,
-
direct connection to the ECU via the DEUTSCH 9-pin connector,
-
implementation of diagnostic procedures in the MARINE / Industrial environment.
Diagnostic features
In combination with the TEXA interface and the IDC6 MARINE software, the AM24A cable enables:
-
reading and clearing fault codes (injection system),
-
preview of real parameters (Live Data),
-
identification of controllers,
-
monitoring the operation of the injection system,
-
implementation of service procedures available for a given system.
The range of functions depends on the manufacturer, engine series and operation in TEXA software.
Compatibility
-
Diagnostic Connector: DEUTSCH 9-pin
-
Environment: MARINE / Industrial
-
Software: TEXA IDC6 MARINE
-
Interfaces: TEXA Navigator TXB 2, TXT, TXT MULTIHUB
-
Cable Type: Complete Diagnostic Lead
-
Designation: AM24A
Application
-
professional Diesel Marine engine services,
-
workshops serving Cummins MerCruiser Diesel, Mercury Diesel QSD, VM Motori MR,
-
Kohler (John Deere) generator services,
-
diagnostic centers and mobile services.
