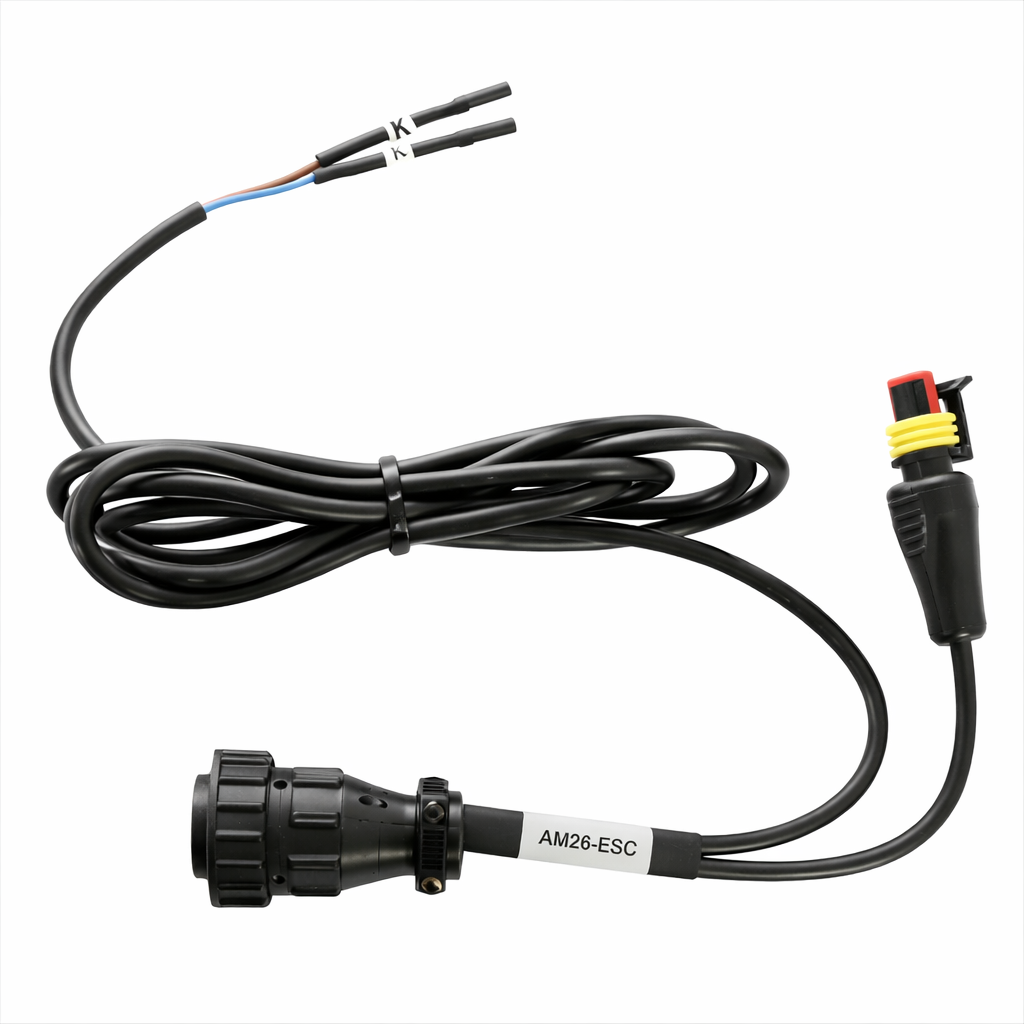

TEXA AM26 Diagnostic Cable – Volvo Penta EGC (Round 8-pin)
TEXA AM26 is a terminal cable designed for diagnostics of Volvo Penta engines equipped with the EGC (Electronic Gas Control) control system and a round 8-pin diagnostic socket. This type of socket is found in gasoline engines produced between May 2005 and May 2007.
The cable is dedicated to work in the MARINE environment and enables stable diagnostic communication in accordance with OEM procedures.
Intended use
The TEXA AM26 cable is used for:
-
electronic diagnostics of Volvo Penta engines with EGC system,
-
communication with the ECU through a round 8-pin diagnostic socket,
-
work as a dedicated terminal cable in the TEXA MARINE system.
Important installation information
-
The cable has 2 wire ends (sleeves).
-
The method of connection to the socket (pin selection) is indicated directly in the TEXA diagnostic software in the appropriate procedure – follow the instructions displayed on the screen carefully.
Power supply – mandatory
NOTE:
To run the diagnostic interface and perform diagnostics:
-
Connect the power cords (alligator blades) to the engine/vehicle battery,
-
In the case of units without their own battery – use an external battery.
Without external power, the diagnostics will not run.
Diagnostic features
In combination with the TEXA interface and the IDC6 MARINE software, the AM26 cable enables:
-
reading and clearing fault codes,
-
preview of real parameters (Live Data),
-
identification of controllers and systems,
-
monitoring engine operation,
-
implementation of service procedures available for the EGC system.
The range of functions depends on the specific engine model and operation in the TEXA software.
Compatibility
-
Engine Brand: VOLVO PENTA
-
System: EGC (Electronic Gas Control)
-
Diagnostic Socket: 8-pin Round
-
Engine type: petrol
-
Years: 05/2005 – 05/2007
-
Environment: MARINE
-
Software: TEXA IDC6 MARINE
-
Interfaces: TEXA Navigator TXB 2, TXT, TXT MULTIHUB
-
Cable designation: AM26
Application
-
professional Volvo Penta engine services (EGC),
-
Marine workshops servicing EGC petrol units from 2005–2007,
-
vessel diagnostic centers,
-
Mobile Marine services.
