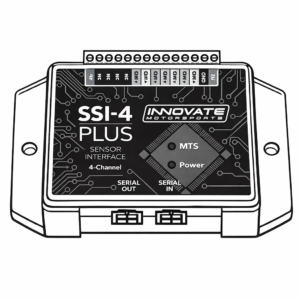

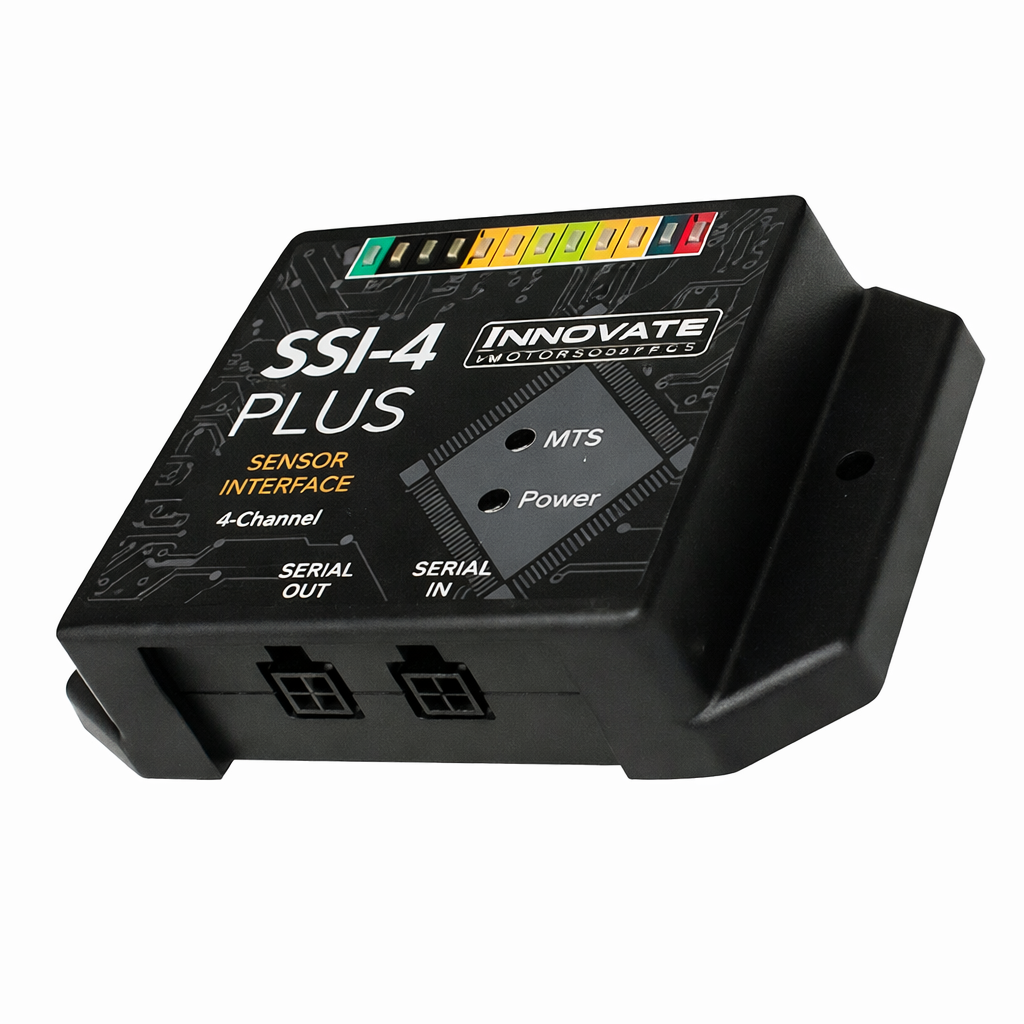

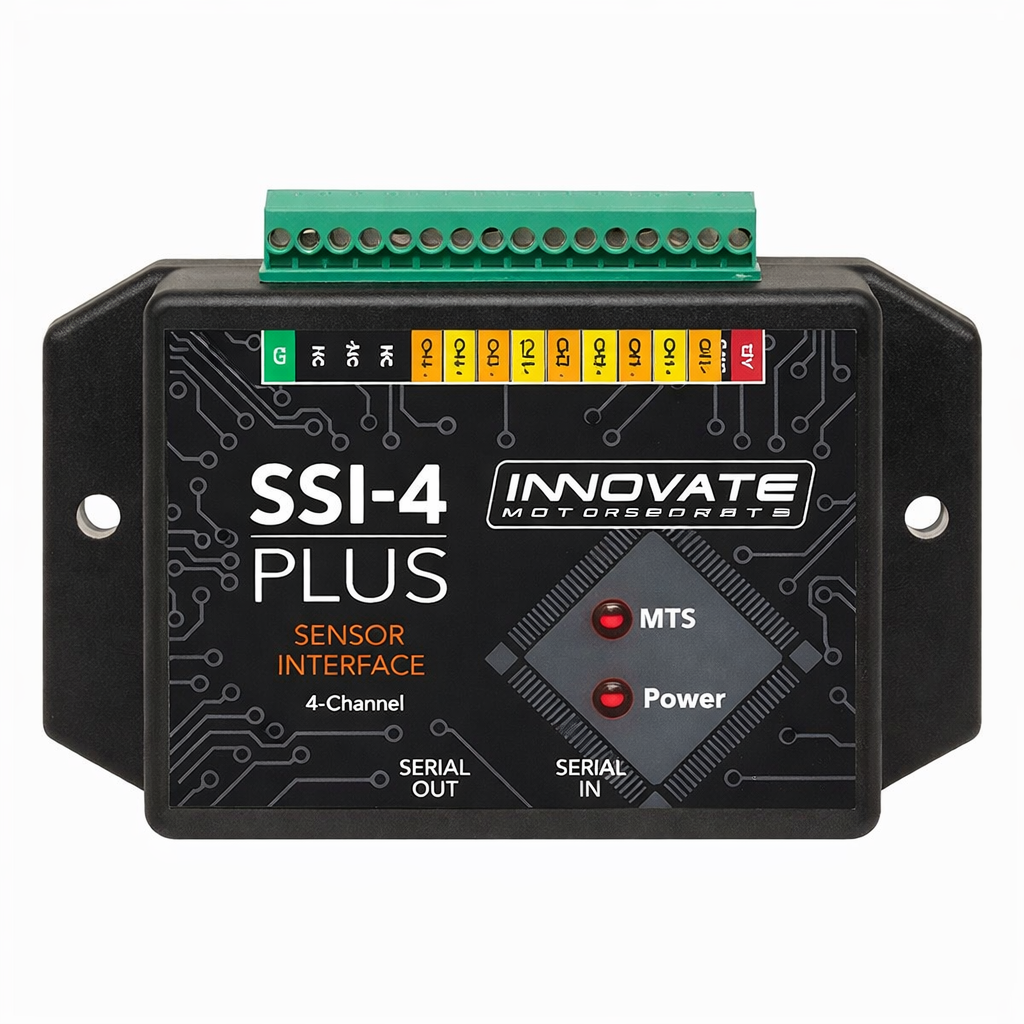

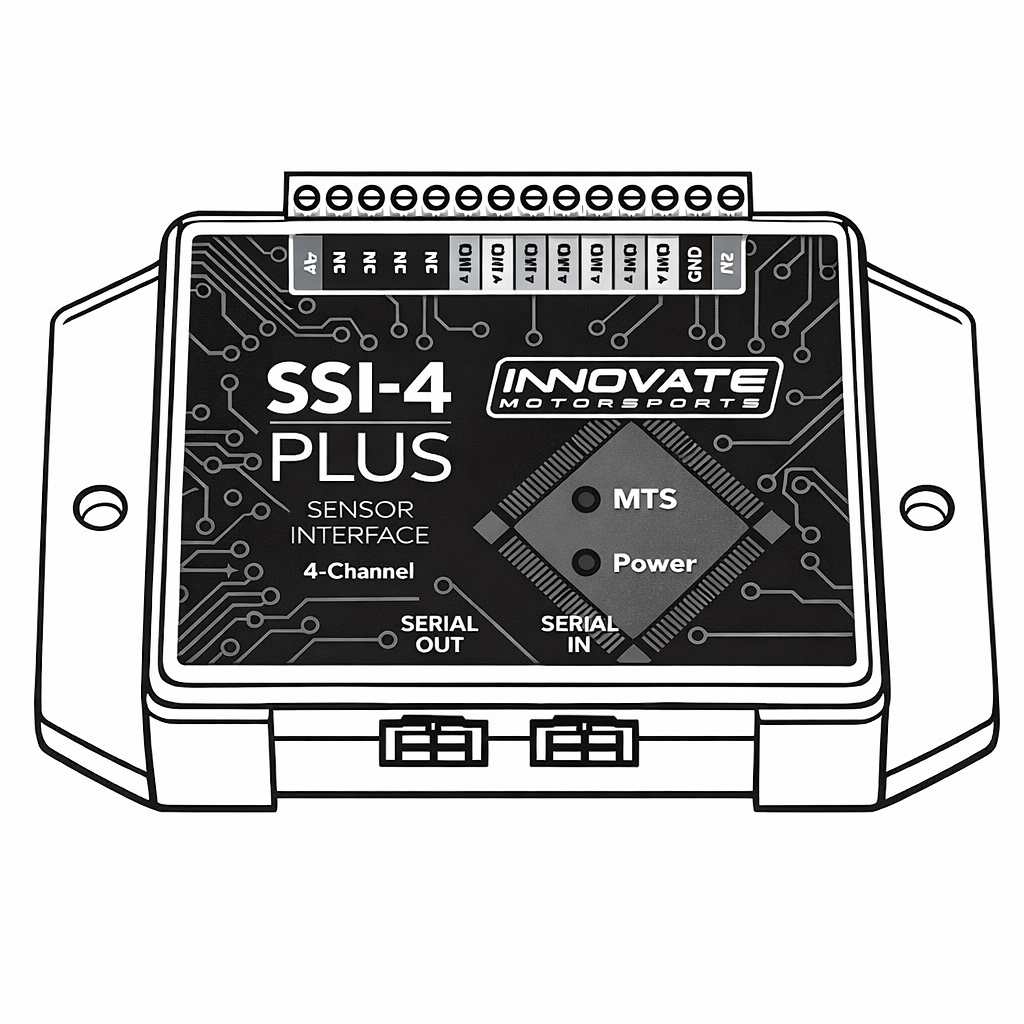

SSI-4 PLUS – Advanced interface for recording external signals
The Innovate SSI-4 PLUS is an advanced interface for recording signals from 4 external sensors, designed as part of the Modular Tuning System (MTS). It allows data to be collected from both frequency sensors (RPM, VSS) and analog sensors from 0-5V (MAP, pressure, throttle position, etc.). It can work on its own or as part of the MTS login chain with other Innovate devices.
Key features
-
4 independent input channels – expansion of the login system with additional signals
-
Channels 1 and 2 – configurable as:
-
RPM (Engine Speed)
-
Speed / VSS
-
Frequency
-
Analogue 0-5 V
-
(channel 2 additionally: duty cycle or dwell)
-
-
Channels 3 4 – 0-5V analog inputs
-
5 V output for powering external sensors
-
MTS integration – daisy-chain capability
-
Stable, synchronized data capture across the system
Integration with the Innovate MTS system
The SSI-4 PLUS is a key module of the MTS (Modular Tuning System). Thanks to the serial ports, it can be connected to other Innovate devices, m.in.:
-
LM-2 (AFR + logger),
-
LC-2 (Broadband Controller),
-
MTX-L / MTX-L PLUS (AFR indicators),
-
TC-4 PLUS (EGT/CHT temperatures),
-
other modules compatible with MTS.
This allows you to create a complete login chain and analyze data in LogWorks (PC).
Application
-
tuning ECUs and piggybacks,
-
logging RPM, VSS, MAP, pressure, signals 0–5 V,
-
load and inertial dynamometers,
-
motorsport and road tests,
-
advanced RD projects and diagnostics.
Specification – abbreviation
-
Number of Channels: 4
-
Input Types: RPM / VSS / Frequency / 0-5V
-
Sensor power supply: 5 V output
-
Communication: Serial (MTS)
-
Operating mode: standalone or MTS log chain
SSI-4 PLUS Kit Contents
-
SSI-4 PLUS Module
-
Serial Program Cable
-
Molex–Molex cable (for MTS/daisy-chain connection)
-
Instructions
