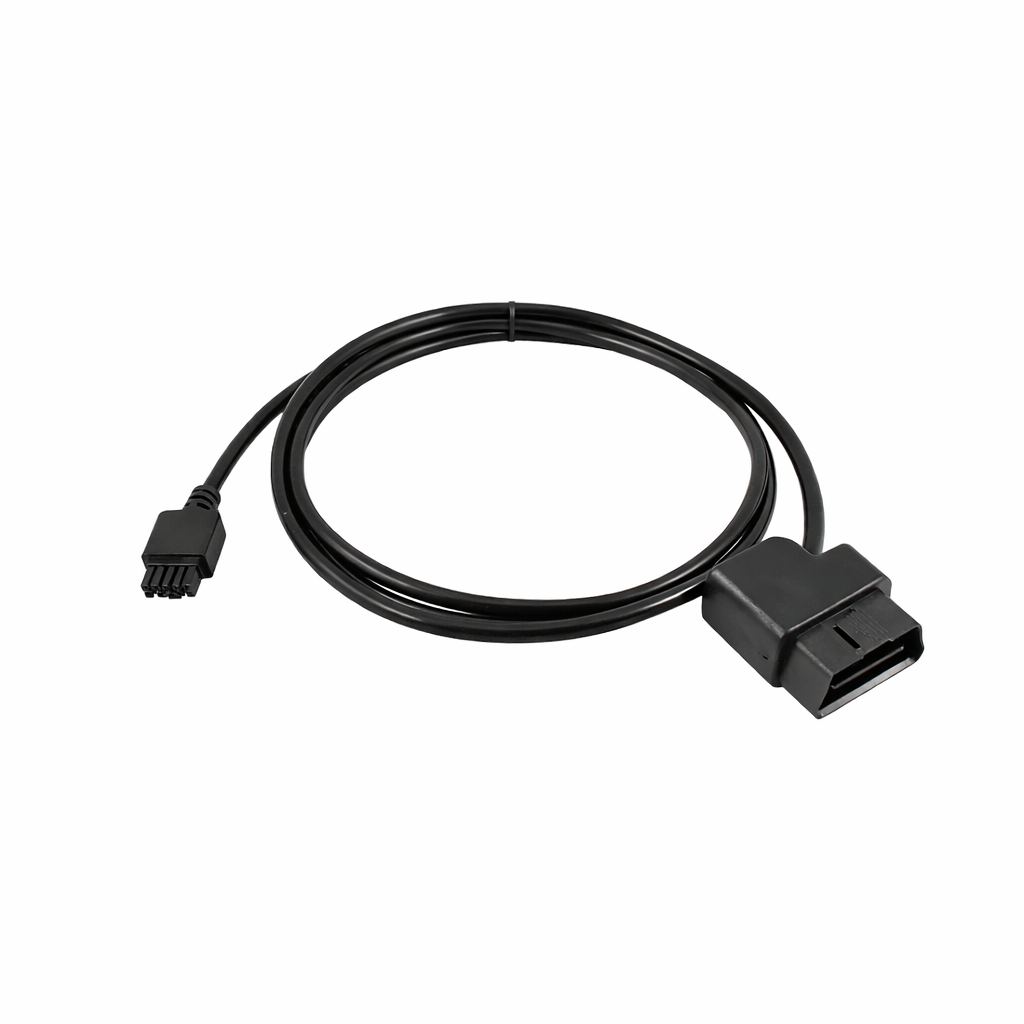

OBD-II/CAN Interface Cable for AFR LM-2 Meter
The Innovate 3809 is a dedicated OBD-II/CAN interface cable designed specifically to work with the LM-2 AFR Meter. It allows the device to be connected to the vehicle’s OBD-II diagnostic port, allowing you to read engine data, record parameters from the CAN bus, and read and clear DTCs.
What is 3809 cable used for?
The Innovate 3809 cable allows you to:
-
Connecting the LM-2 to the vehicle’s OBD-II port
-
Reading and clearing DTCs (diagnostic trouble codes)
-
CAN/OBD-II data logging (up to 16 data channels)
-
Integration of ECU parameters with AFR logging and other signals
This allows you to analyse AFR simultaneously with ECU data, which is very important when tuning, diagnosing and working with controller maps.
Key features
-
16-pin OBD-II connector (standard diagnostic socket of most vehicles)
-
CAN/OBD-II Bus Compliant
-
Direct connection to LM-2 – plug-and-play
-
Stable communication and reliable data pins
-
Enables real-time ECU data collection together with AFR
Application
The 3809 cable is used for:
-
Logging OBD-II/CAN with AFR (e.g. in LogWorks)
-
AFR vs. ECU Parameters (Maps, RPM, Load, etc.)
-
Diagnostics of engine errors and their deletion during tuning
-
Road test schedules and dyno
Compatibility
-
Devices: Innovate LM-2 AFR Meter
-
Interface: OBD-II 16-pin/CAN (ECU Cooperation)
-
Systems: Petrol, Diesel (if provided by OBD-II/CAN)
-
Part Number: 3809
