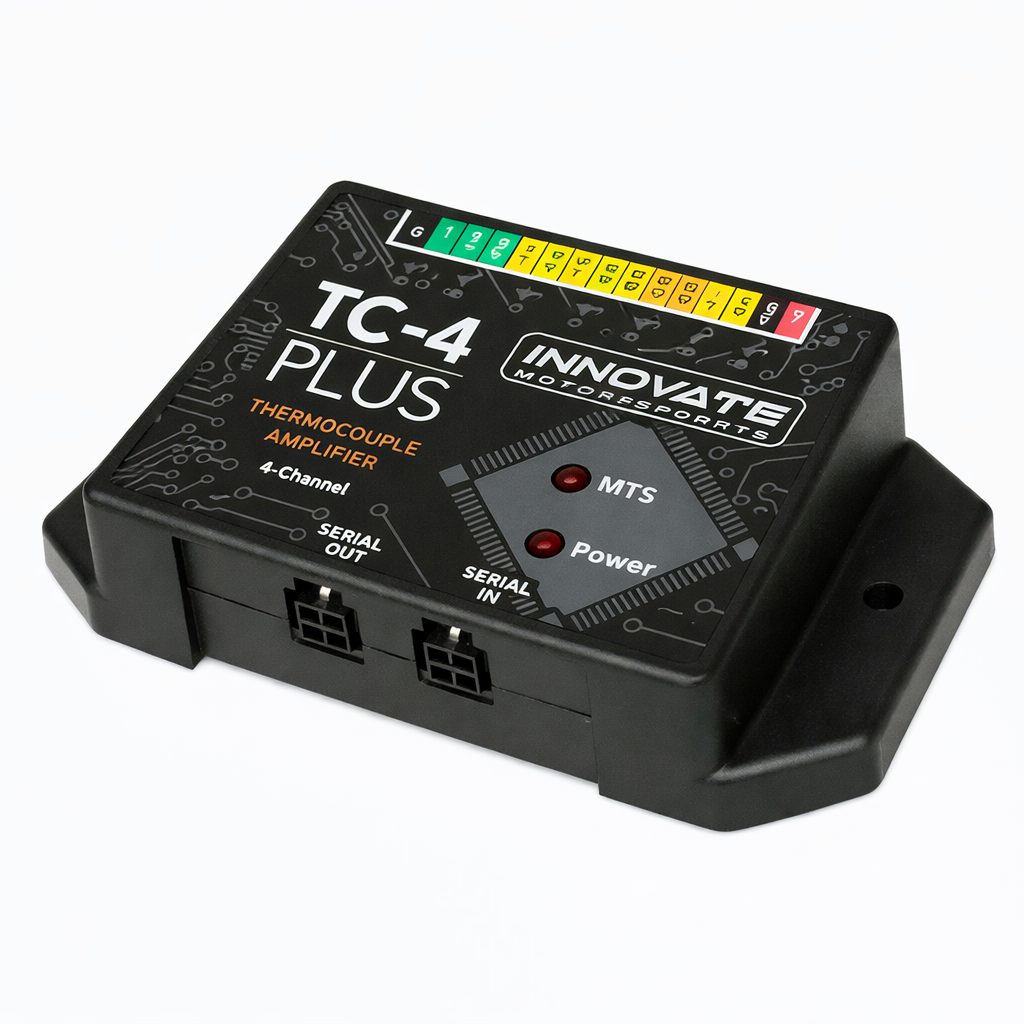

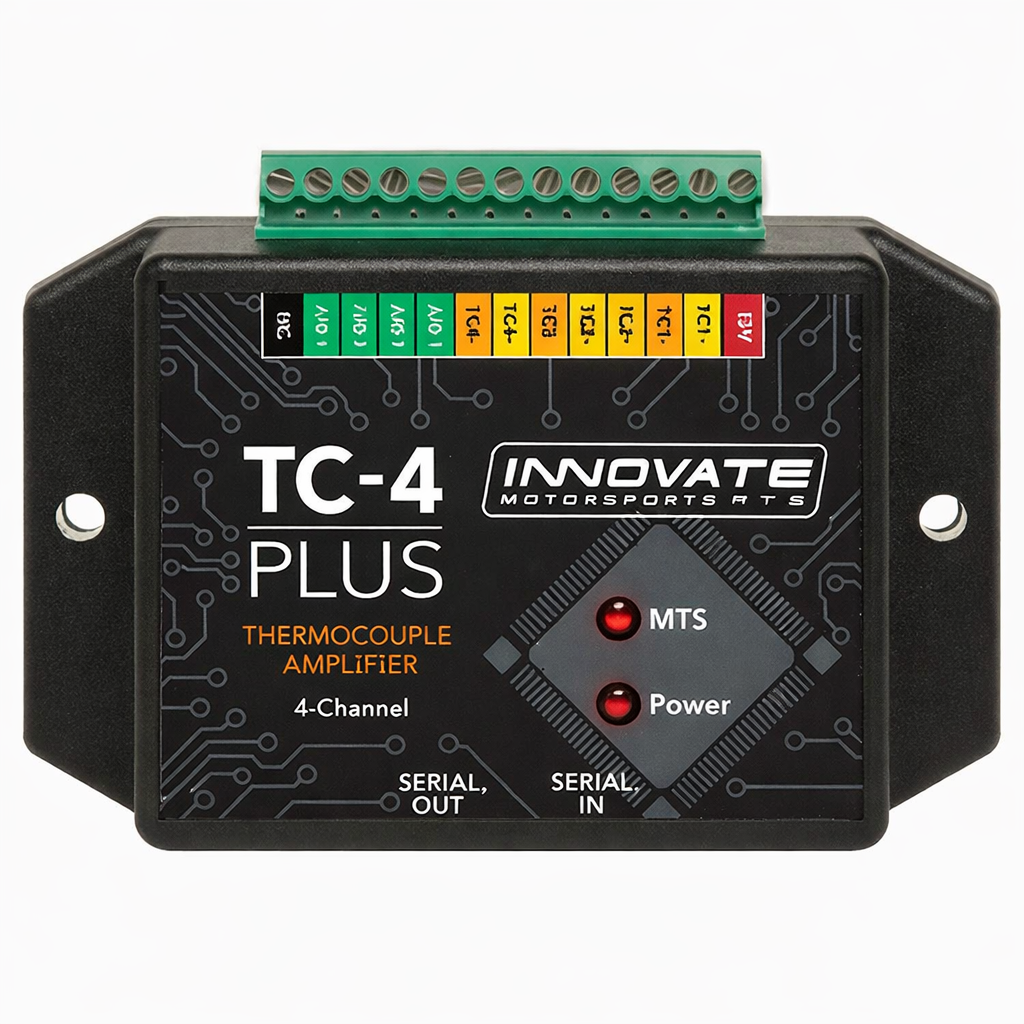

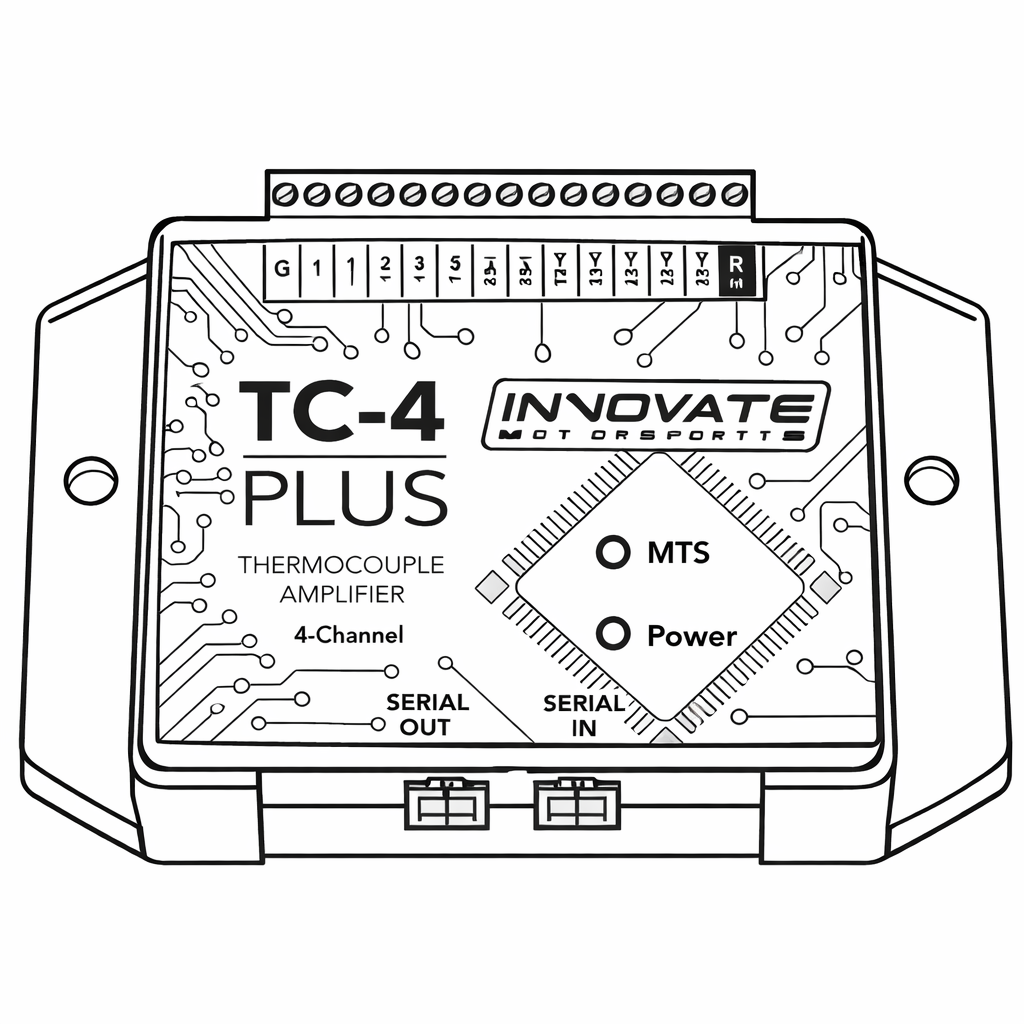

TC-4 PLUS – 4-channel temperature controller
The TC-4 PLUS is a professional 4-channel K-type thermocouple controller designed for precise temperature measurement in tuning, racing, and research applications. The device can work stand-alone or as part of the Modular Tuning System (MTS), creating an extensive data login chain with other Innovate devices.
Key features
-
4 independent temperature inputs – K-type thermocouples
-
Measuring range:
-
32 – 1999 °F
-
0 – 1093 °C
-
-
4 fully configurable 0-5V analogue outputs
(one output per channel) -
Digital input/output (Serial / MTS)
-
Can be operated as a standalone module or part of an MTS system
-
High stability and accuracy – a PRO solution
What you can measure up to with the TC-4 PLUS
The TC-4 PLUS is ideal for measuring m.in:
-
EGT – exhaust gas temperatures (single cylinders or bubbles),
-
temperatures before and after the intercooler,
-
catalyst temperature,
-
oil, liquid, head (CHT) temperatures,
-
other temperature points that require a K-type thermocouple.
Integration with Innovate MTS
The TC-4 PLUS is a key component of the Innovate Modular Tuning System (MTS). Thanks to serial ports, it can be connected daisy-chain with other Innovate devices, such as:
-
LM-2 (AFR + logger),
-
LC-2 (Broadband Controller),
-
MTX-L / MTX-L PLUS (AFR indicators),
-
SSI-4 PLUS (0-5 V / RPM / VSS inputs).
All data can be synchronized and analyzed in LogWorks (PC).
Application
-
load and inertial dynamometers,
-
tuning of ECUs and performance engines,
-
Motorsport (track day, rally, drag),
-
R&D projects and road tests,
-
professional tuning workshops.
TC-4 PLUS Kit Contents
-
TC-4 PLUS Module
-
Serial Program Cable
-
Molex–Molex cable (for MTS/daisy-chain connection)
-
User Manual
